565Test data
Date: 18.09.2023. - 19.09.2023.
Temperature: +21 ◦C
Climate: Sunny, clear
Average consumption: 13.4 kWh/100km
385Test data
Date: 27.02.2024.-28.02.2024.
Temperature: +4 to +5 ◦C
Climate: Cloudy, wet/rain
Average consumption: 18.3 kWh/100km
The table shows the maximum mileage recorded by Elektrum experts during the test run in ECO mode and using A/C in the summer season and heating in the winter season. Actual maximum mileage depends on the driving speed, route, driving style, climatic and other conditions.
Energy consumption, kWh/km
Energy consumption depending on the season and mode is between 11.7 - 23.1 kWh/100km
13.5Test data
Date: 18.09.2023.
Temperature: +20 ◦C
Climate: Sunny, clear
17.0Test data
Date: 28.02.2024.
Temperature: +4 ◦C
Climate: Cloudy, wet
Highway
17.8 - 23.1
15.4Test data
Date: 18.09.2023.
Temperature: +20 ◦C
Climate: Sunny, clear
19.2Test data
Date: 28.02.2024.
Temperature: +4 ◦C
Climate: Cloudy, wet
Combined
14.5 - 20.0
12.6Test data
Date: 21.09.2023.
Temperature: +21 ◦C
Climate: Sunny, clear
17.7Test data
Date: 27.02.2024.
Temperature: +5 ◦C
Climate: Cloudy, rain
Average energy consumption at constant speedLength of the test distance: 5 km
Speed, km/h
Elektrum summer test, kWh/100km
Elektrum winter test, kWh/100km
50
9.4
13.2
70
11.9
15.6
90
14.5
18.5
The table shows the energy consumption recorded on the electric vehicle's on-board computer during the test drive by Elektrum experts when driving in ECO mode and using A/C in the summer season and heating in the winter season. Actual energy consumption depends on the driving speed, route, driving style, climatic and other conditions.
Battery and charging
Total battery capacity
77.4 kWh
Usable battery capacity
74.0 kWh
Battery Type
Lithium-ion
Architecture
800 V
Number of Cells
384
Bidirectional Charging (V2L)
Available (3.6 kW AC)
Nominal Voltage
697 V
Bidirectional Charging (V2H)
Not Available
Pack Configuration
192s2p
Bidirectional Charging (V2G)
Not Available
Max. AC Charge Power
11 kW
Max. DC Charge Power
233 kW
Information about alternating current (AC) charging types
Avg. PowerAverage power provided by charge point over a session from 10% to 80%.
Charge TimeTime needed to charge from 10% to 80%.
Charge SpeedAverage charging speed over a session from 10% to 80%.
50 kW DC
CCS
Right Side - Rear
50 kW
50 kW
1 hour 5 minutes
280 km/h
150 kW DC
100 kW
95 kW
34 minutes
540 km/h
150 kW DC
150 kW
135 kW
24 minutes
770 km/h
175 kW DC
175 kW
155 kW
21 minutes
880 km/h
350 kW DC
233 kW
200 kW
16 minutes
1150 km/h
Elektrum Drive direct current (DC) charging test results
Parameters
150kW DC chargingThe charging data shown in the table were obtained at the Elektrum Drive 50 kW DC charging station in Jūrmala, 4 Jomas Street. The calculations assume an average consumption of 14.9 kWh/100 km obtained during the Elektrum combined mode test drive.
Average charging speed up to 80%
1171 km/h
Average charging power (5%-80%)
145 kW
Time to charge for 100 km
5 minutes
Charging time (5->50%)
15 minutes
Charging time (5->70%)
22 minutes
Charging time (5->80%)
25 minutes
Charging time (5->90%)
32 minutes
Charging time (5->95%)
39 minutes
Actual charging data depends on the capacity available at the station and the specifications of the electric vehicle’s built-in battery - mainly the capacity and temperature during charging.

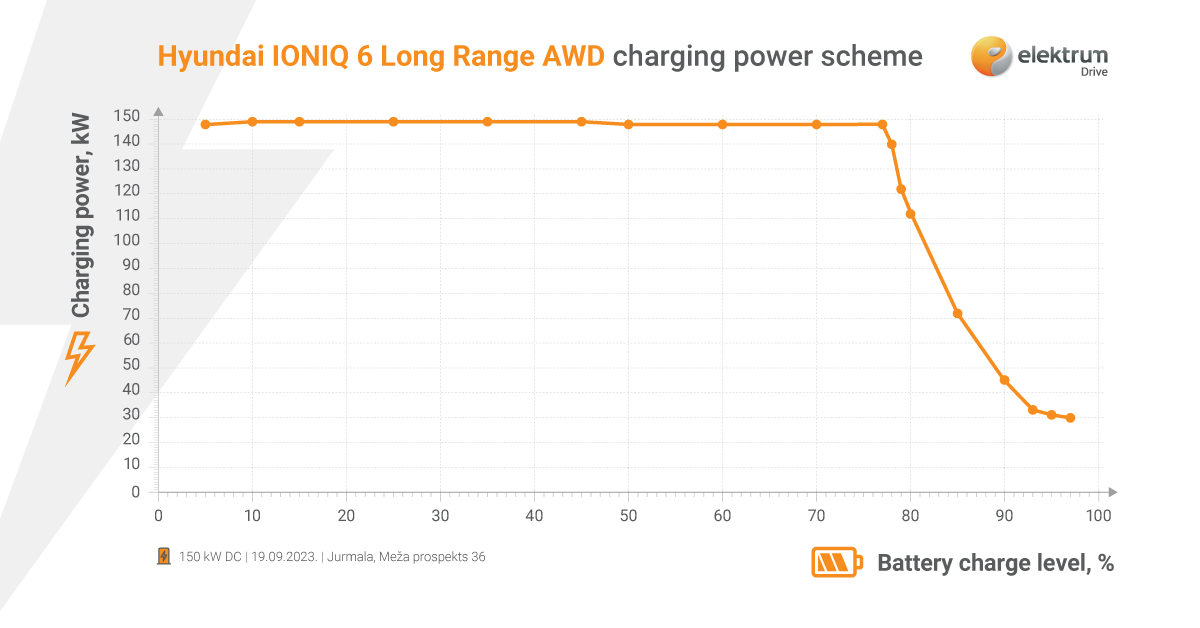

Charge curve
Map of test drive routes
Comparison of electric vehicles according to WLTP data
The WLTP (Worldwide Harmonised Light Vehicles Test Procedure) standard data for the specific model of the electric vehicle is used in the comparison calculation. The WLTP standard is based on worldwide driving data and includes driving situations in both urban and highway traffic. Actual maximum mileage, average consumption and acceleration depend on the specific model of electric vehicle and its equipment, chosen route, driving style, climatic and other conditions.
