The data are obtained as a result of the calculation, assuming that a 10% loss occurs during the charging process.
633
Average charging speed up to 80% at 150 kW DC charging station.
Показатели энергоэффективности и сравнение
General information
Car Body
Hatchback
Acceleration 0-100 km/h
7.3 sec
Seats
5
Top Speed
160 km/h
Length
4261 mm
Total Power
150 kW (204 PS)
Width
1809 mm
Total Torque
310 Nm
Width with mirrors
2070 mm
Weight Unladen (EU)
1815 kg
Height
1562 mm
Gross Vehicle Weight (GVWR)
2270 kg
Tow Hitch
Yes
Cargo Volume
385 L
Roof Rails
No
Cargo Volume Max
1267 L
Maximum range, km
The maximum mileage depending on the season and mode is between 250 - 520 km
Route
EV-database dataSource: EV-database.org
Elektrum summer test
Elektrum winter test
City
340 - 520
-
-
Highway
250 - 325
-
-
Combined
295 - 405
350Test data
Date: 22.07.2024.-23.07.2024
Temperature: +25 ◦C
Climate: Sunny, dry
Average consumption: 14.0 kWh/100km
250Test data
Date: 07.02.2024.
Temperature: -3 ◦C
Climate: Cloudy, wet, snow
Average consumption: 18.8 kWh/100km
The table shows the maximum mileage recorded by Elektrum experts during the test run in ECO mode and using A/C in the summer season and heating in the winter season. Actual maximum mileage depends on the driving speed, route, driving style, climatic and other conditions.
Energy consumption, kWh/km
Energy consumption depending on the season and mode is between 11.2 - 23.2 kWh/100km
Route
EV-database dataSource: EV-database.org
Elektrum summer test
Elektrum winter test
City
11.2 - 17.1
13.1Test data
Date: 22.07.2024.
Temperature: +25 ◦C
Climate: Sunny, dry
Average energy consumption at constant speedLength of the test distance: 5 km
Speed, km/h
Elektrum summer test, kWh/100km
Elektrum winter test, kWh/100km
50
9.4
15.2
70
12.0
17.4
90
15.3
20.6
The table shows the energy consumption recorded on the electric vehicle's on-board computer during the test drive by Elektrum experts when driving in ECO mode and using A/C in the summer season and heating in the winter season. Actual energy consumption depends on the driving speed, route, driving style, climatic and other conditions.
Battery and charging
Total battery capacity
62.0 kWh
Usable battery capacity
58.0 kWh
Battery Type
Lithium-ion
Architecture
400 V
Number of Cells
216
Bidirectional Charging (V2L)
Not Available
Nominal Voltage
400 V
Bidirectional Charging (V2H)
Not Available
Pack Configuration
108s2p
Bidirectional Charging (V2G)
Not Available
Max. AC Charge Power
11 kW
Max. DC Charge Power
120kW
Information about alternating current (AC) charging types
Charging typeAndmed: EV-database.org
Charge Port
Port Location
Max. Power
Time
Rate
Wall Plug
Type 2
Right Side - Rear
2.3 kW
29 hours 45 minutes
12 km/h
1-phase 16A
3.7 kW
18 hours 30 minutes
19 km/h
1-phase 32A
7.4 kW
9 hours 15 minutes
38 km/h
3-phase 16A
11 kW
6 hours 15 minutes
56 km/h
3-phase 32A
22 kW**
6 hours 15 minutes
56 km/h
** Limited by on-board charger, vehicle cannot charge faster.
Information about direct current (DC) charging
Charging PointSource: EV-database.org
Charge Port
Port Location
Max. PowerMaximum power provided by charge point.
Avg. PowerAverage power provided by charge point over a session from 10% to 80%.
Charge TimeTime needed to charge from 10% to 80%.
Charge SpeedAverage charging speed over a session from 10% to 80%.
50 kW DC
CCS
Right Side - Rear
50 kW
40 kW
1 hour 4 minutes
230 km/h
100 kW DC
100 kW
70 kW
37 minutes
390 km/h
150 kW DC
120 kW
80 kW
32 minutes
450 km/h
Elektrum Drive direct current (DC) charging test results
Parameters
150kW DC charging in summerThe charging data shown in the table were obtained at the Elektrum Drive 150 kW DC charging station in Rīga, 105 Vienības gatve. The calculations assume an average consumption of 12.7 kWh/100 km obtained during the Elektrum combined mode test drive.
150kW DC charging in winterThe charging data shown in the table were obtained at the Elektrum Drive 150 kW DC charging station in Rīga, 3 Muitas Street. The calculations assume an average consumption of 19.1 kWh/100 km obtained during the Elektrum combined mode test drive.
Average charging speed up to 80%
633 km/h
289 km/h
Average charging power (5%-80%)
75 kW
49 kW
Time to charge for 100 km
9 minutes
21 minutes
Charging time (5->50%)
15 minutes
25 minutes
Charging time (5->70%)
26 minutes
39 minutes
Charging time (5->80%)
33 minutes
48 minutes
Charging time (5->90%)
43 minutes
59 minutes
Charging time (5->95%)
50 minutes
1 hour 6 minutes
Actual charging data depends on the capacity available at the station and the specifications of the electric vehicle’s built-in battery - mainly the capacity and temperature during charging.

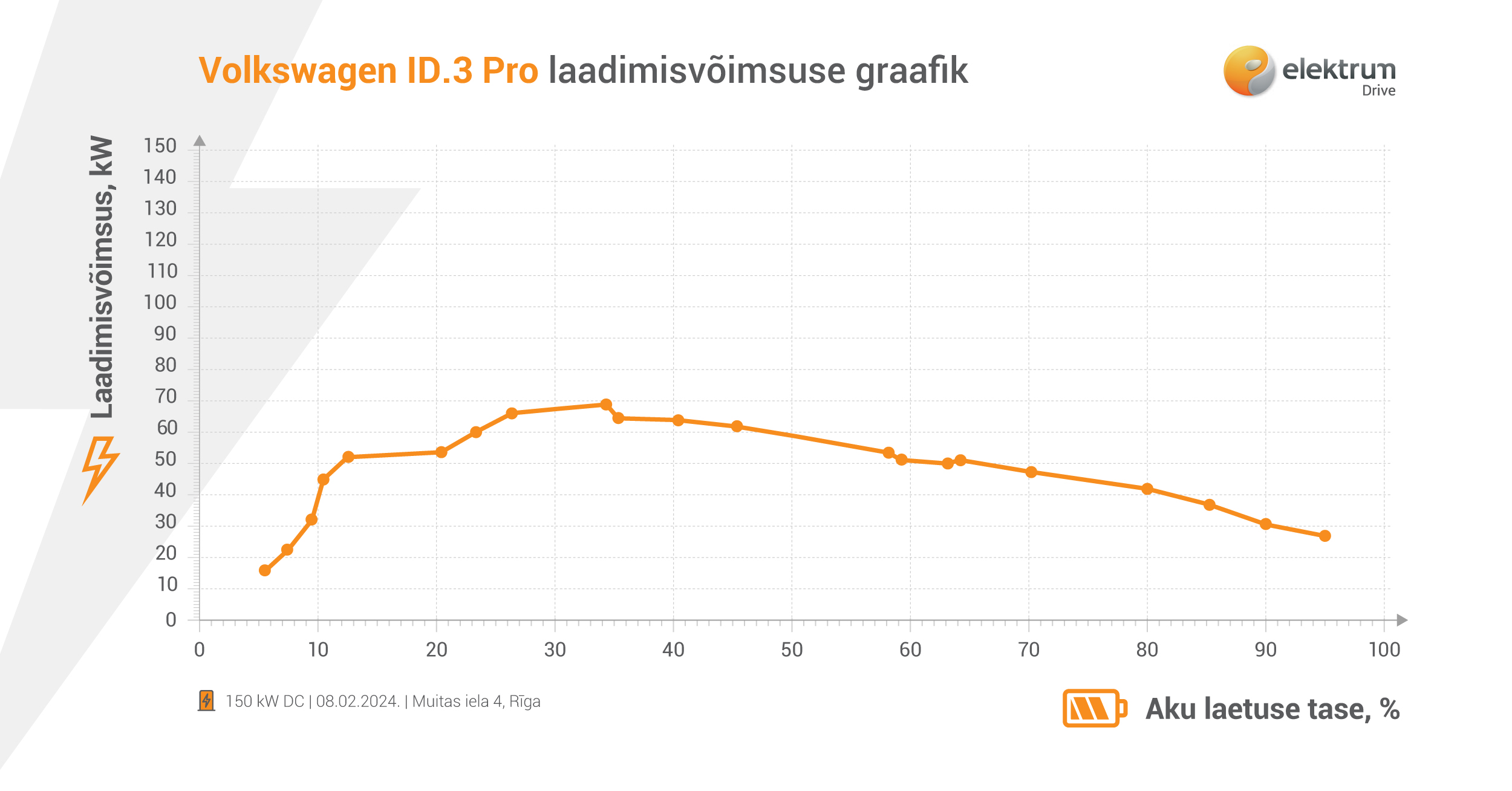

Charge curve
Map of test drive routes
Comparison of electric vehicles according to WLTP data
The WLTP (Worldwide Harmonised Light Vehicles Test Procedure) standard data for the specific model of the electric vehicle is used in the comparison calculation. The WLTP standard is based on worldwide driving data and includes driving situations in both urban and highway traffic. Actual maximum mileage, average consumption and acceleration depend on the specific model of electric vehicle and its equipment, chosen route, driving style, climatic and other conditions.
